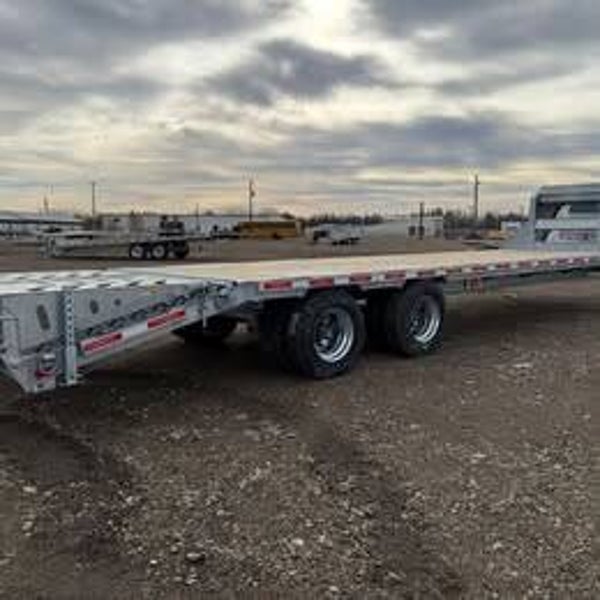

GHDGF1 – 8.5' x 25' Extreme Duty Deck Over Gooseneck Galvanized

🔴 Triumph Trailers GHDGF1 – 8.5' x 25' Extreme Duty Deck Over Gooseneck Galvanized

Available for order!

Built for Serious Equipment & Heavy Loads

The GHDGF1 is an galvanized extreme-duty deck over gooseneck designed for contractors, oilfield, ag, and heavy equipment hauling.

Specs

8.5' x 25' deck

102" deck width

34" deck height (low profile)

28,800 lb GVWR

21,020 lb payload

7,780 lb empty weight

Features
✔️ 16" engineered I-beam frame (3/8" web, 4" top & bottom flange)
✔️ 3" crossmembers, 16" on center
✔️ 2" rub rail with stake with stake pocket and chain spools every 12"
✔️ Treated wood deck
✔️ Fold-down side steps on both sides of the trailer
✔️ Lockable chain/winch cabinet
✔️ Heavy duty, spring assisted ramps
✔️ Dual jacks (two 12K spring-loaded) and drop legs
✔️ Adjustable gooseneck coupler (2-5/16")
✔️ (2) 10,000 lb oil-bath axles
✔️ Electric brakes on both axles
✔️ 235/80R16 tires
✔️ LED lighting & sealed wiring
✔️ 2 D-rings

⭐ Available Options

Winch
Hydraulic jacks
Hydraulic ramps
16k axle upgrade
12K jacks upgrade
Toolboxes
Deck on the neck
5th wheel attachment
Hutch Suspension
Undermount toolboxes
2 speed jacks

Why Galvanized Matters

This trailer is hot-dip galvanized after fabrication, meaning the entire frame is submerged in molten zinc for full coverage — no paint to chip, peel, or rust. Ideal for:

Canadian winters
Gravel roads
Salt exposure
Long-term heavy use
