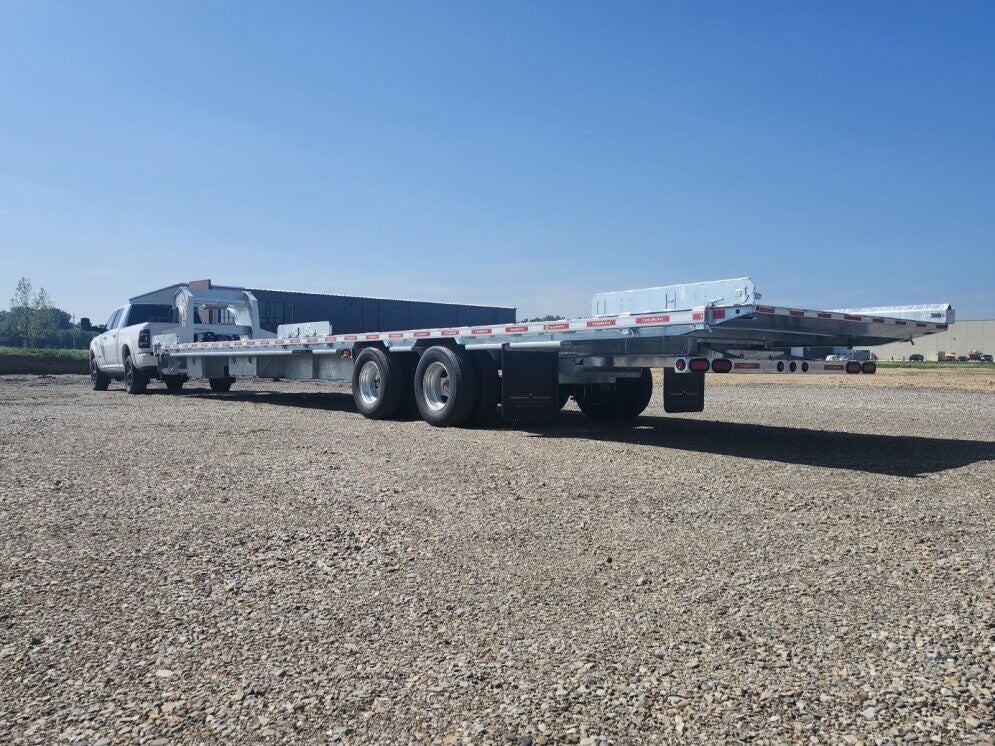

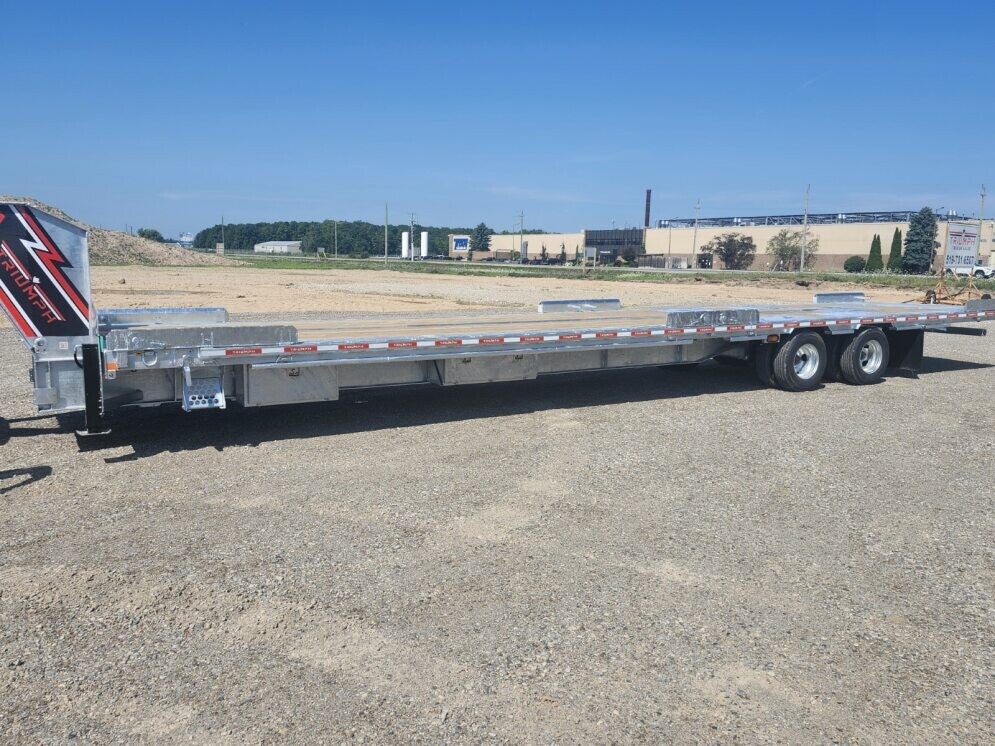

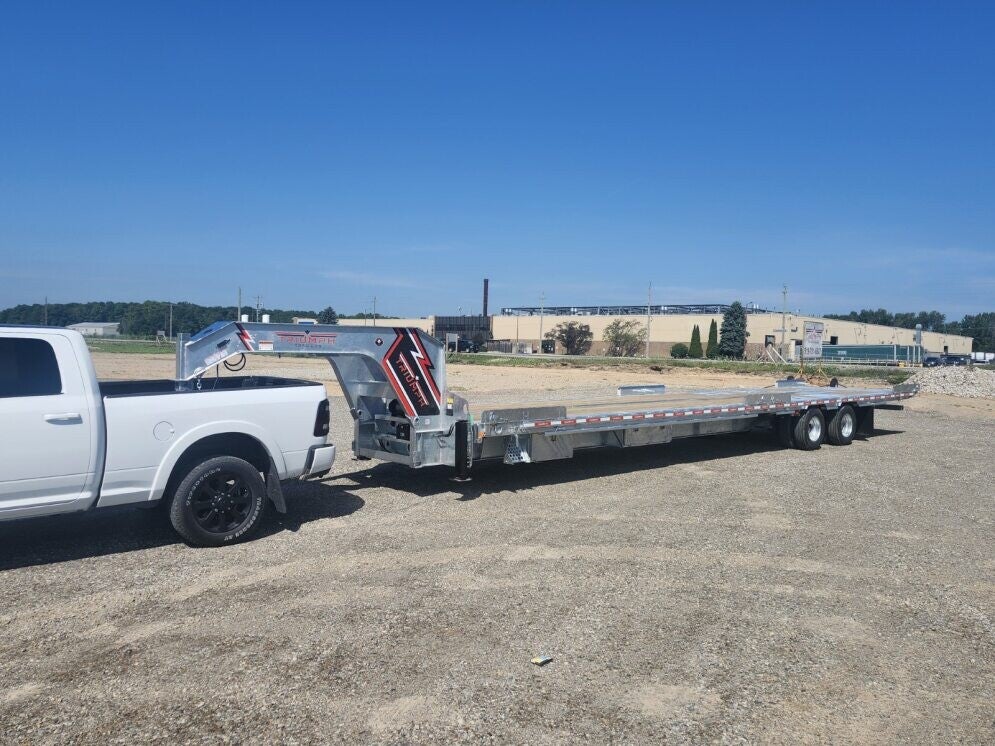

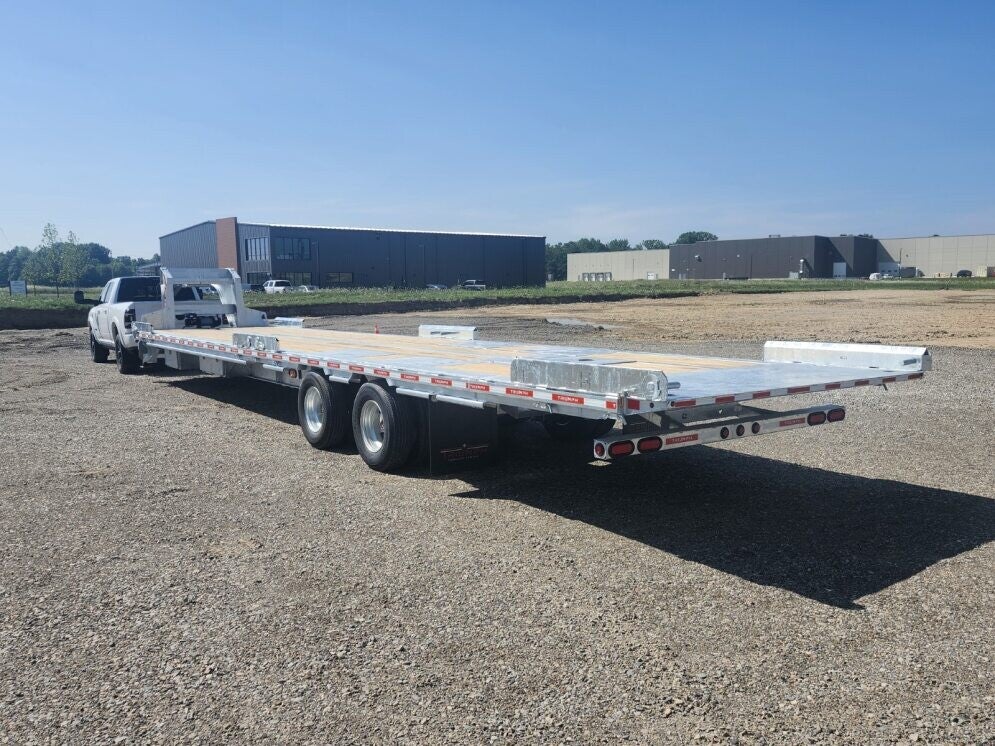

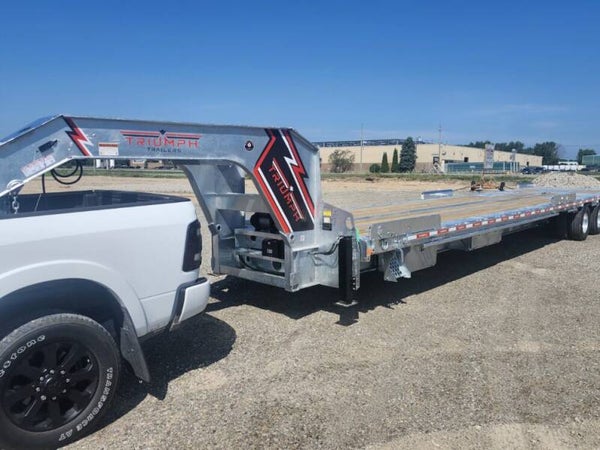

GGSCFT4 102" x 36' - 12k Extreme Duty Sea Container Gooseneck Full Tilt Galvanized Trailer

GGSCFT4 102" x 36' - 12k Extreme Duty Sea Container Gooseneck Full Tilt Galvanized Trailer
CA$45,424.00

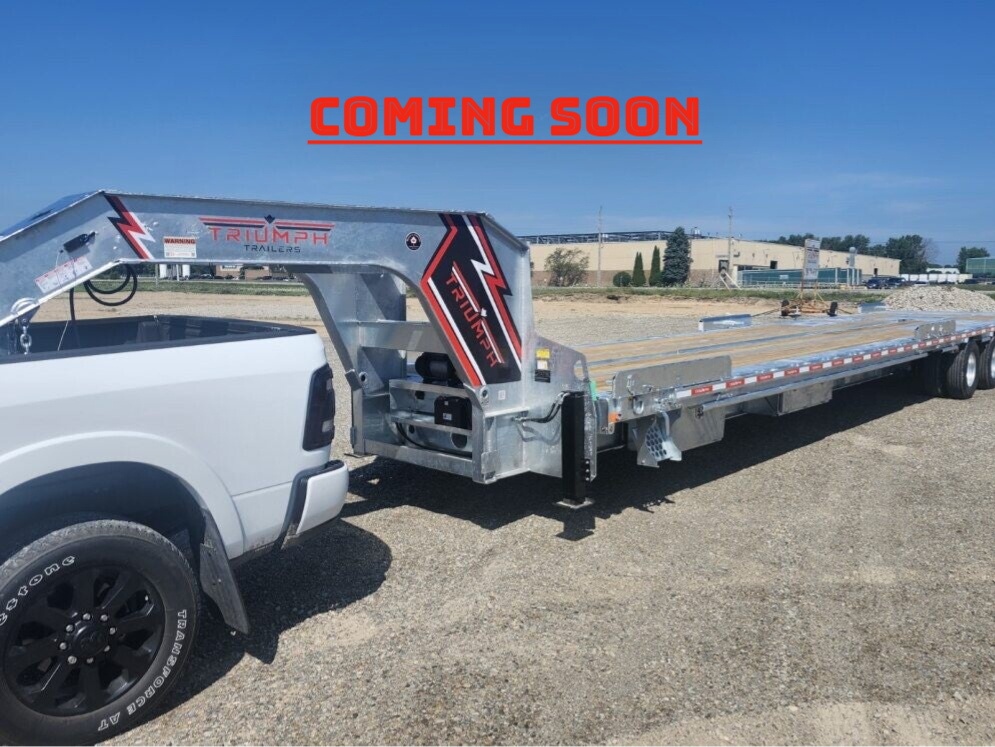

*COMING SOON*

Introducing the GGSCFT4 Extreme Duty Sea Container Gooseneck Full Tilt Galvanized Trailer by Triumph Trailers – Built for Heavy-Duty Shipping and Hauling

Robust Construction & Size:

  • 102” wide x 36’ long, with an optional 40’ model available
  • GVWR of 28,800 lbs (38,400 lbs for the 40’ version)
  • Hot dip galvanized for maximum rust and corrosion protection
  • 16” engineered I-beam chassis with 3/8” x 4” top and bottom flanges
  • 10” engineered I-beam on upper deck with ¼” x 4” flanges
  • 7-gauge webbing for enduring support
  • 3” crossmembers, spaced 16” on center

Loading & Container Support:

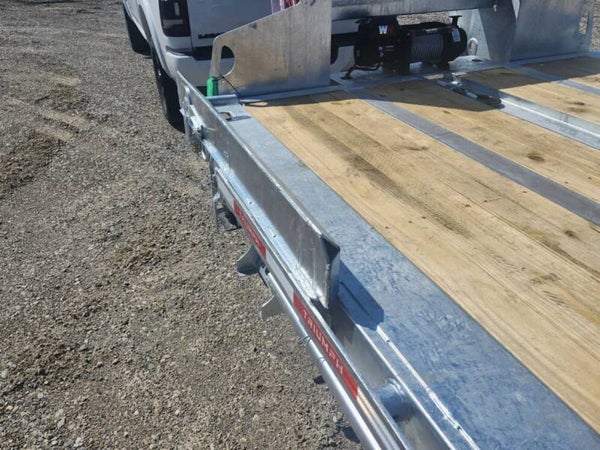

  • Steel sides on both edges of deck for smooth container sliding
  • Recessed winch mount in rear and two winch mounts at the front for flexible loading
  • Recessed channel for winch cable storage
  • Drop-in stake pocket guides (6) for container positioning
  • Smooth knife edge with a 14-degree loading angle for easy loading/unloading
  • Drop down light bar with spring to prevent bouncing during transport

Support & Convenience Features:

  • Bolt-on chain cabinet and 2” rub rail with stake pockets and chain spools every 12”

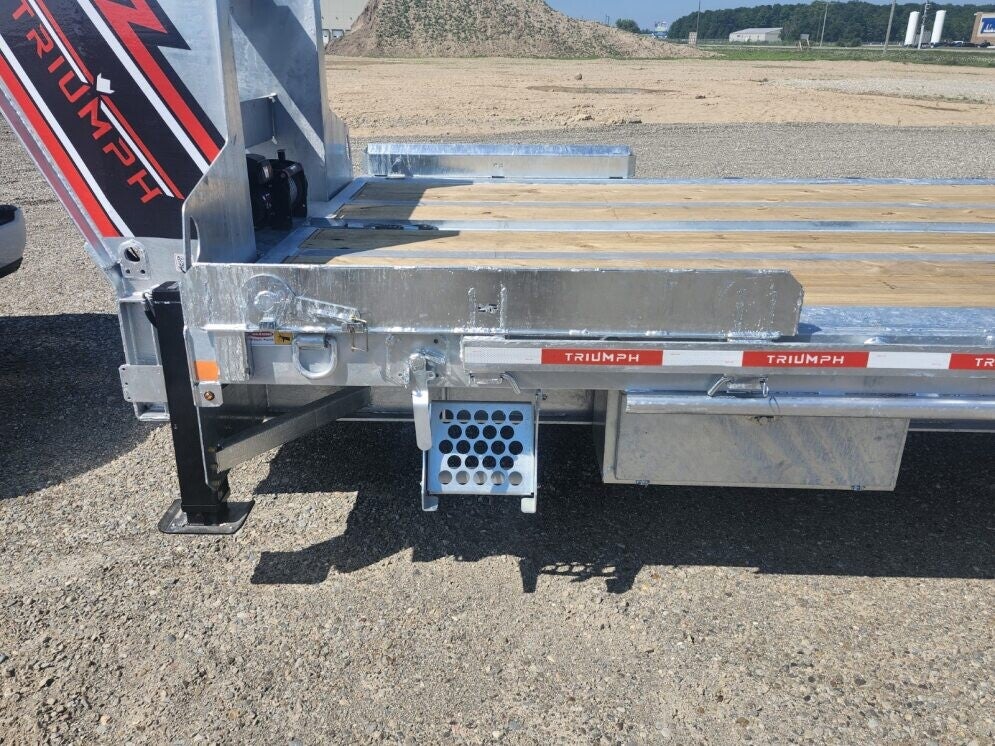

  • Fold-down steps on both sides of the deck for safety and access
  • Undermount toolbox for tools and accessories

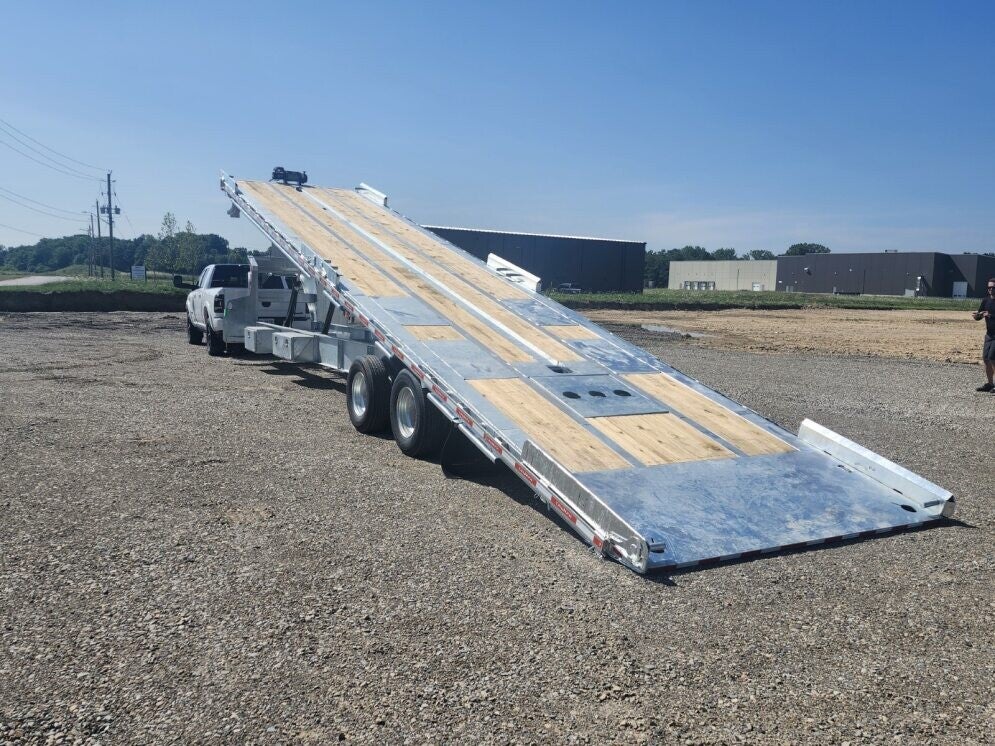

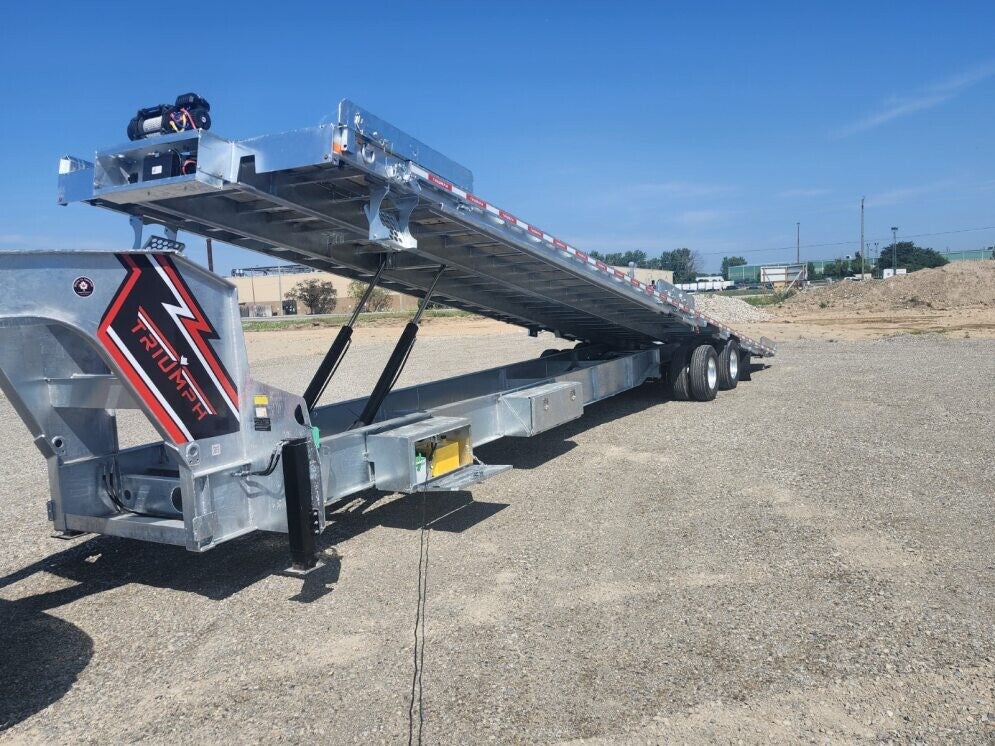

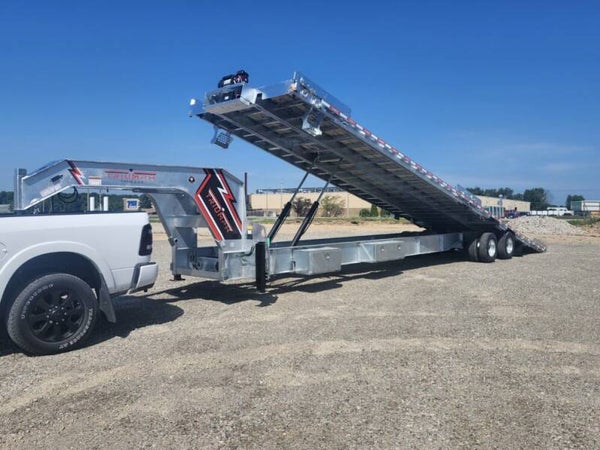

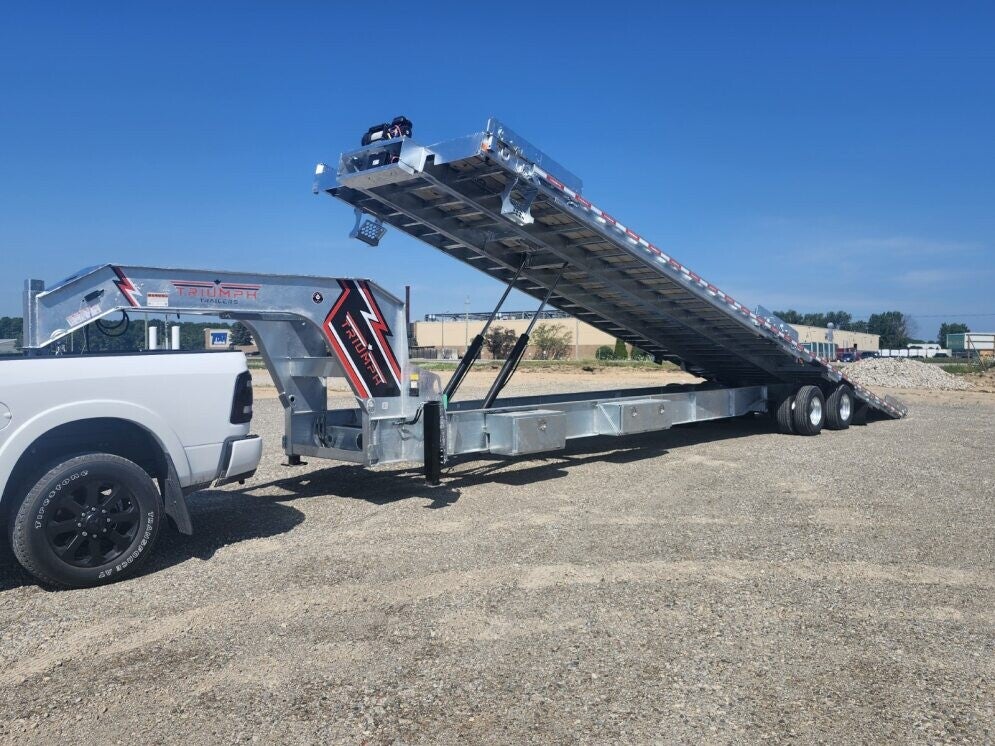

  • Power up, power down hydraulic pump with two 4” bore cylinders for reliable tilting
  • Spare tire mount for emergencies

Heavy-Duty Components & Safety:

  • 235/80R16 tires supported on galvanized wheels
  • 12,000 lb axles with oil bath hubs (16,000 lbs for 40’ trailer)
  • Slipper suspension for a smooth ride
  • Two 12k spring-loaded jacks for stability
  • 2 5/16” adjustable gooseneck coupler for towing versatility
  • Mud flaps, LED lighting, sealed wire harness, and built-in 110V charger included

Optional Upgrades & Accessories:

  • Winch tracking, hydraulic brake upgrade, 16K axle upgrade
  • Dual hydraulic jacks, 5th wheel attachment, additional stake pocket guides
  • Undermount toolboxes, Hutch suspension, deck on the neck, wireless remote, and more at additional cost (inquire for pricing)

This heavy-duty, fully galvanized sea container trailer is designed for demanding shipping environments, offering unmatched durability, flexibility, and functionality. Whether you select the 36’ or the larger 40’ model, Triumph’s gooseneck trailers are your reliable choice for heavy shipping needs.
