GGFT1 - Extreme-Duty Gooseneck Deck-over Hydraulic tilt

CA$28,258.00

Built for maximum hauling — rugged deck-over tilt design, built to handle the heaviest loads.

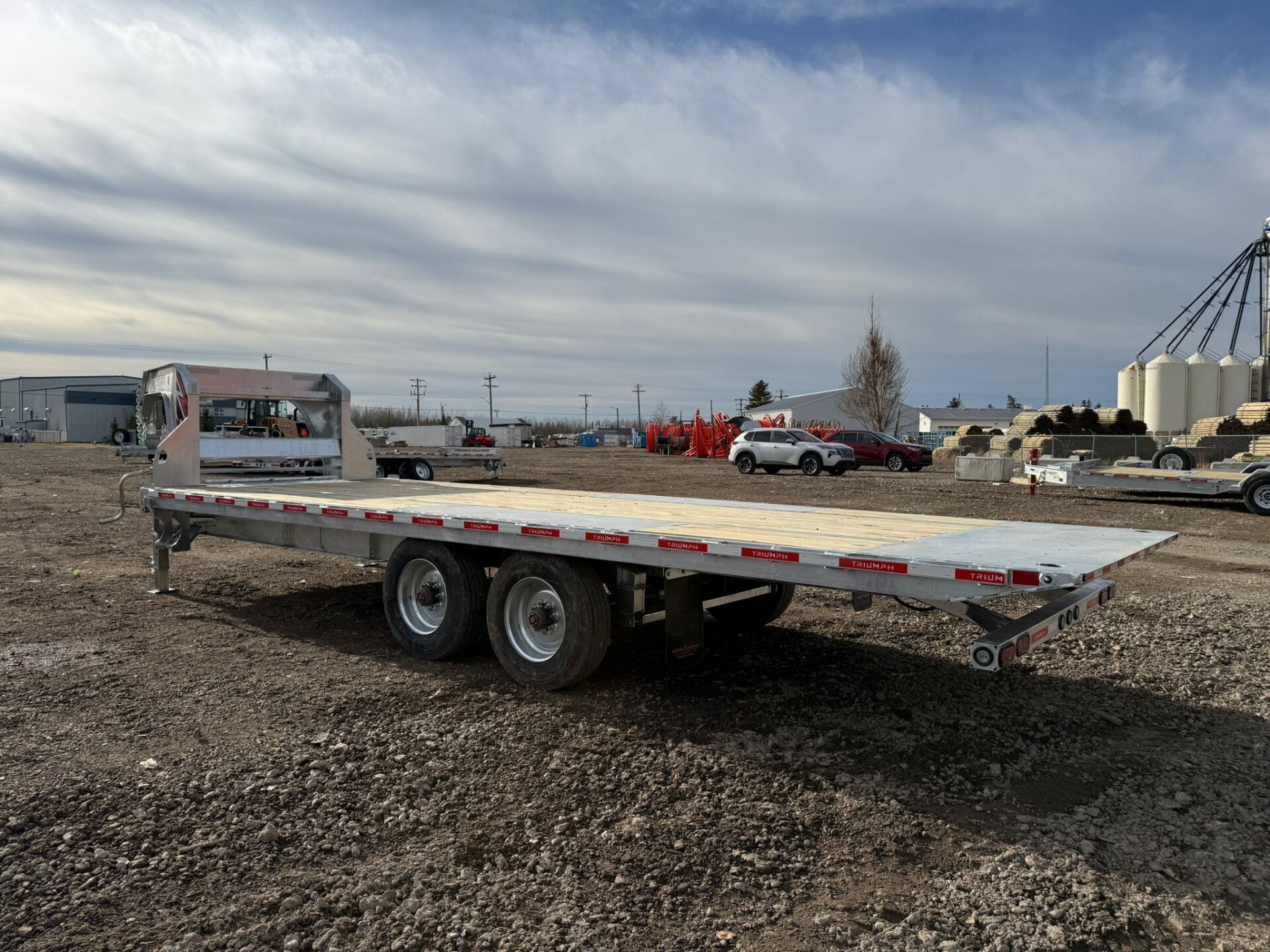

Introducing our 8' x 24' Heavy-Duty Gooseneck Deck-Over Hydraulic Tilt — 24,000 lb GVWR

Built to haul, built to last:

12" engineered I-beam frame with 1/4" x 4" top & bottom flanges and 7-gauge webbing

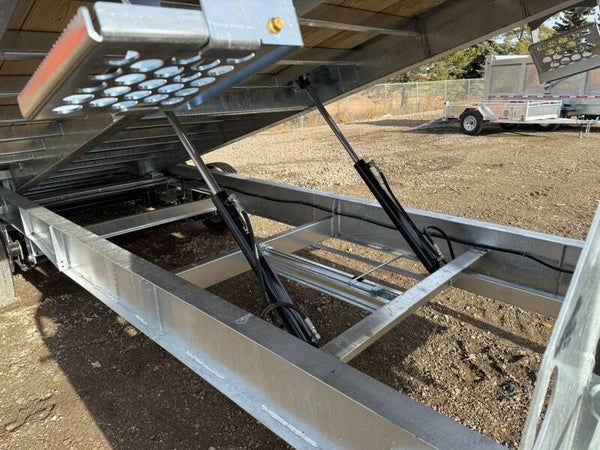

Dual hydraulic cylinders that exceed trailer rating with 15° load angle
2-stage power unit (power up / power down) and deep-cycle battery

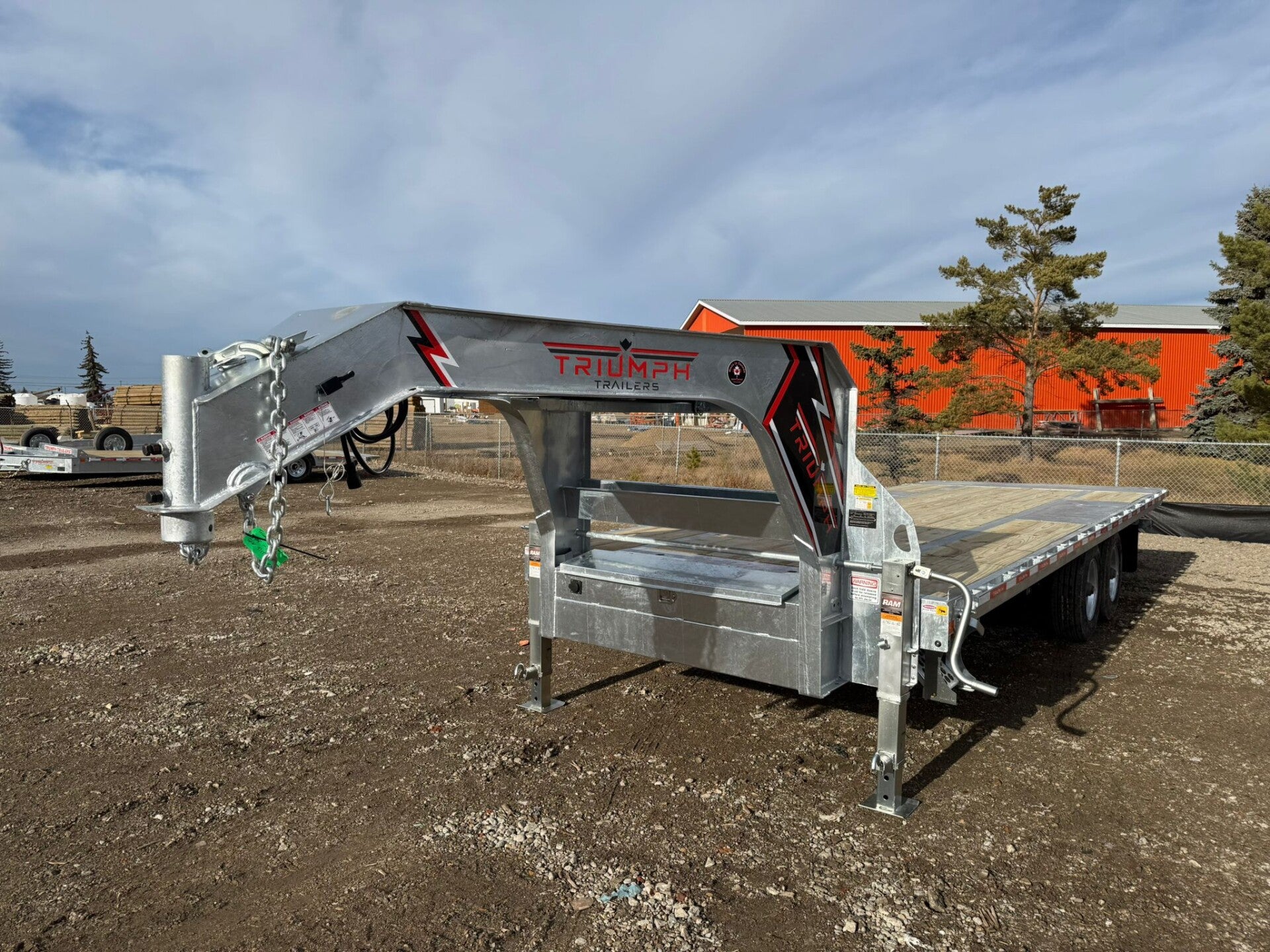

2-5/16" adjustable gooseneck coupler and 12k spring-loaded jacks

Deck & deck features:

Treated yellow pine deck with 3" crossmembers at 16" OC
Heavy-duty integrated winch plates on deck and gooseneck; optional winch tracking
2" x 3/8" rub rail, chain slots in knife edge, stake pockets and chain spools every 12"
Fold-down steps both sides, built-in front toolbox, drop-down spare mount

Chassis, axles & tires:

10,000 lb axles with oil-bath hubs
Tires: 10-ton 235/75R17.5 on galvanized wheels
Mud flaps and heavy-duty spring-loaded light/crash bar
Spare tire and mount included

Electrical & controls:

Built-in 110V charger, LED lighting, sealed wire harness
Deep-cycle battery included; optional wireless remote

Additional options:

Winch tracking, fifth-wheel coupler
Hydraulic jacks, deck on the neck, Hutch suspension, wireless remote

Why choose this trailer? Superior structural design, over-capacity hydraulics, and jobsite-ready features give you safe, reliable loading and hauling for heavy equipment and machinery.

Financing Available
