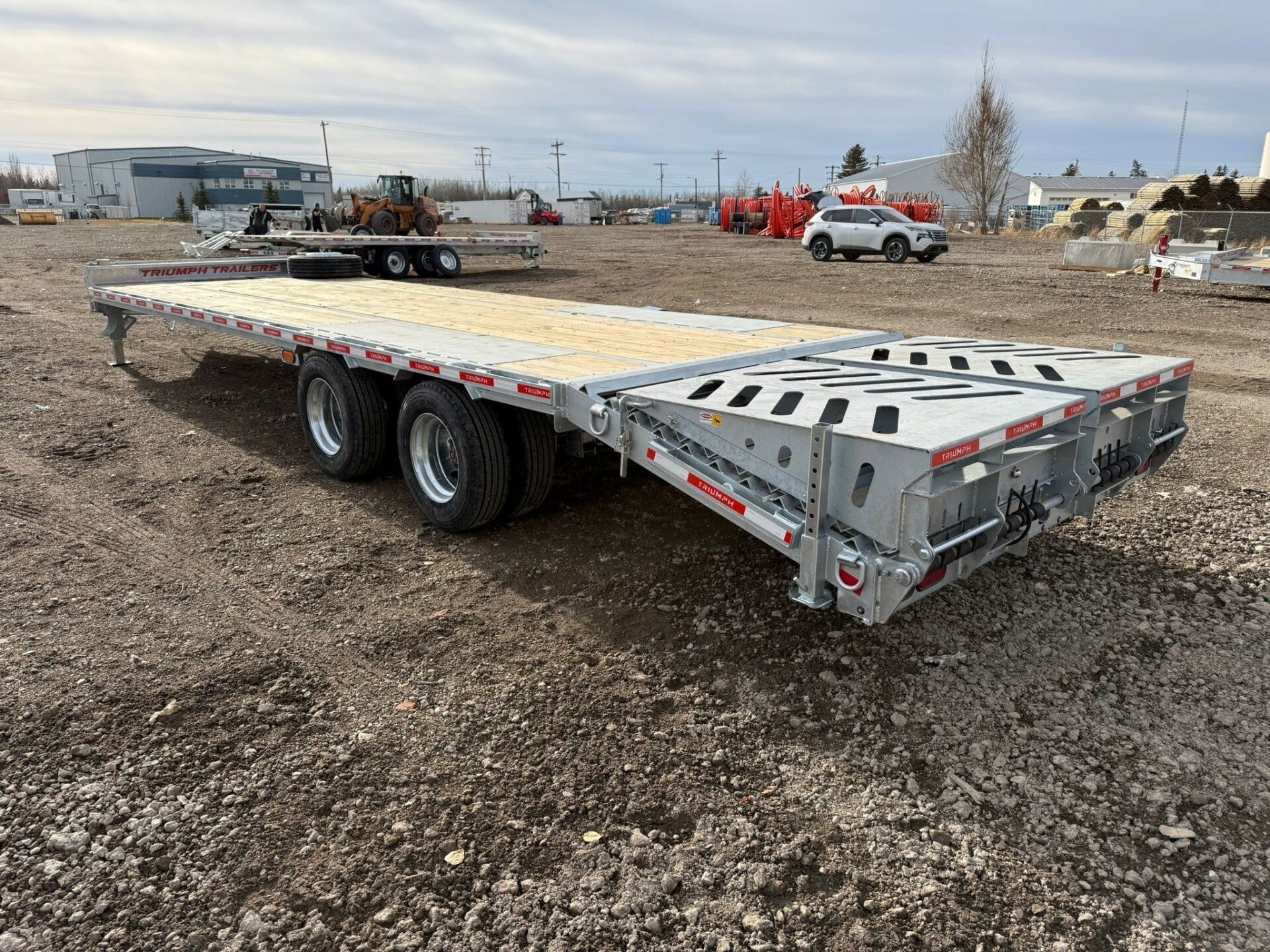

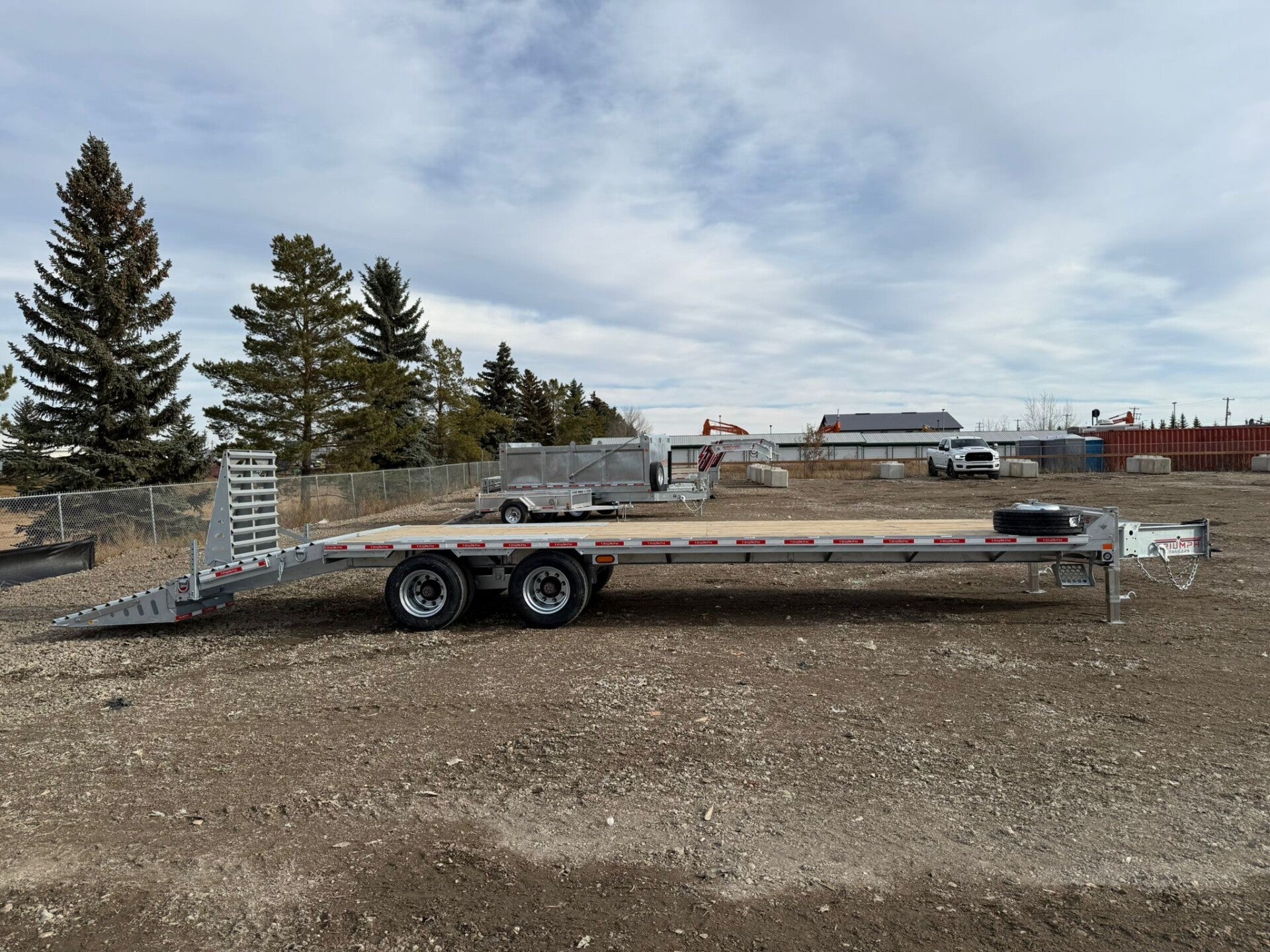

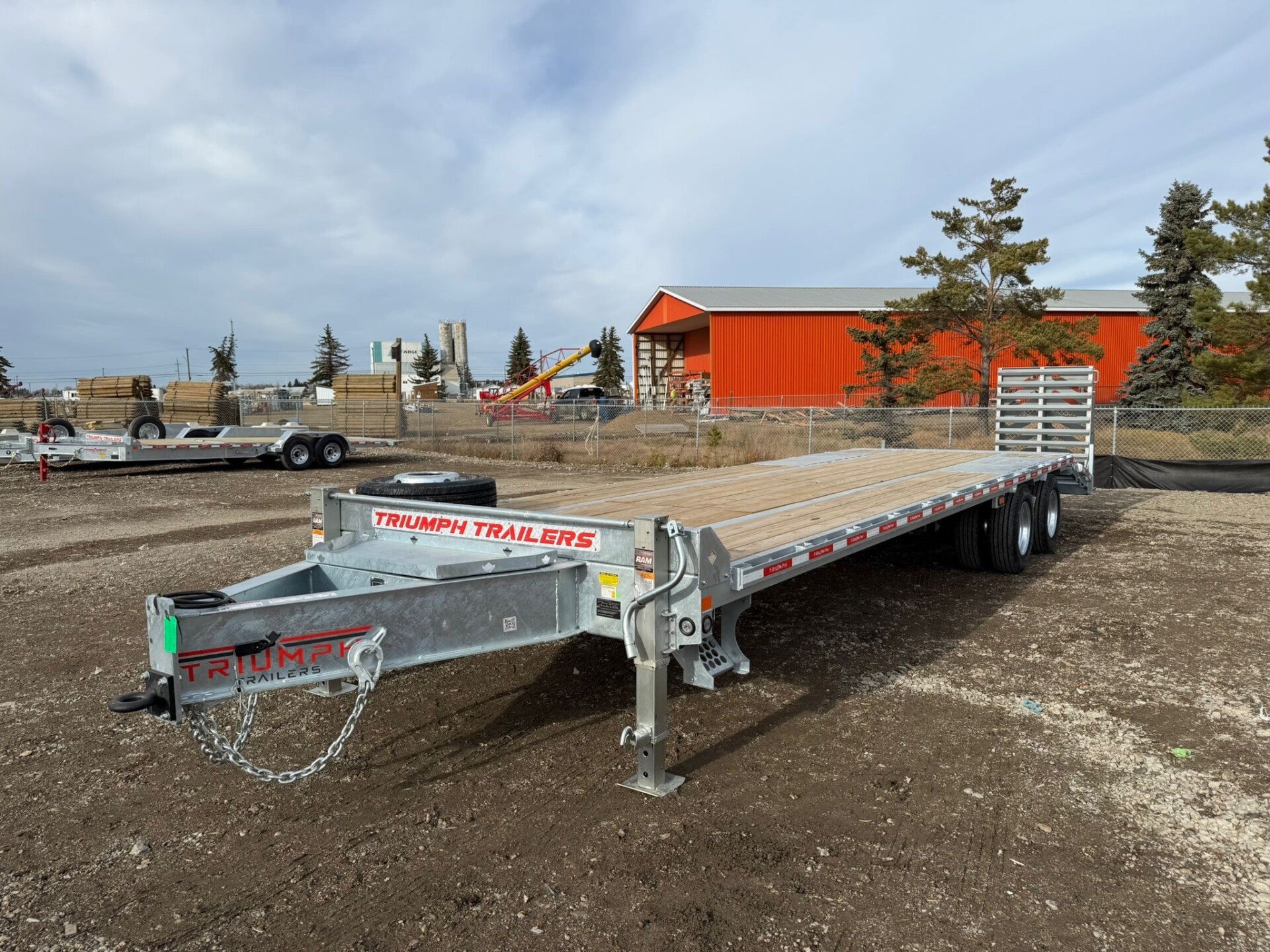

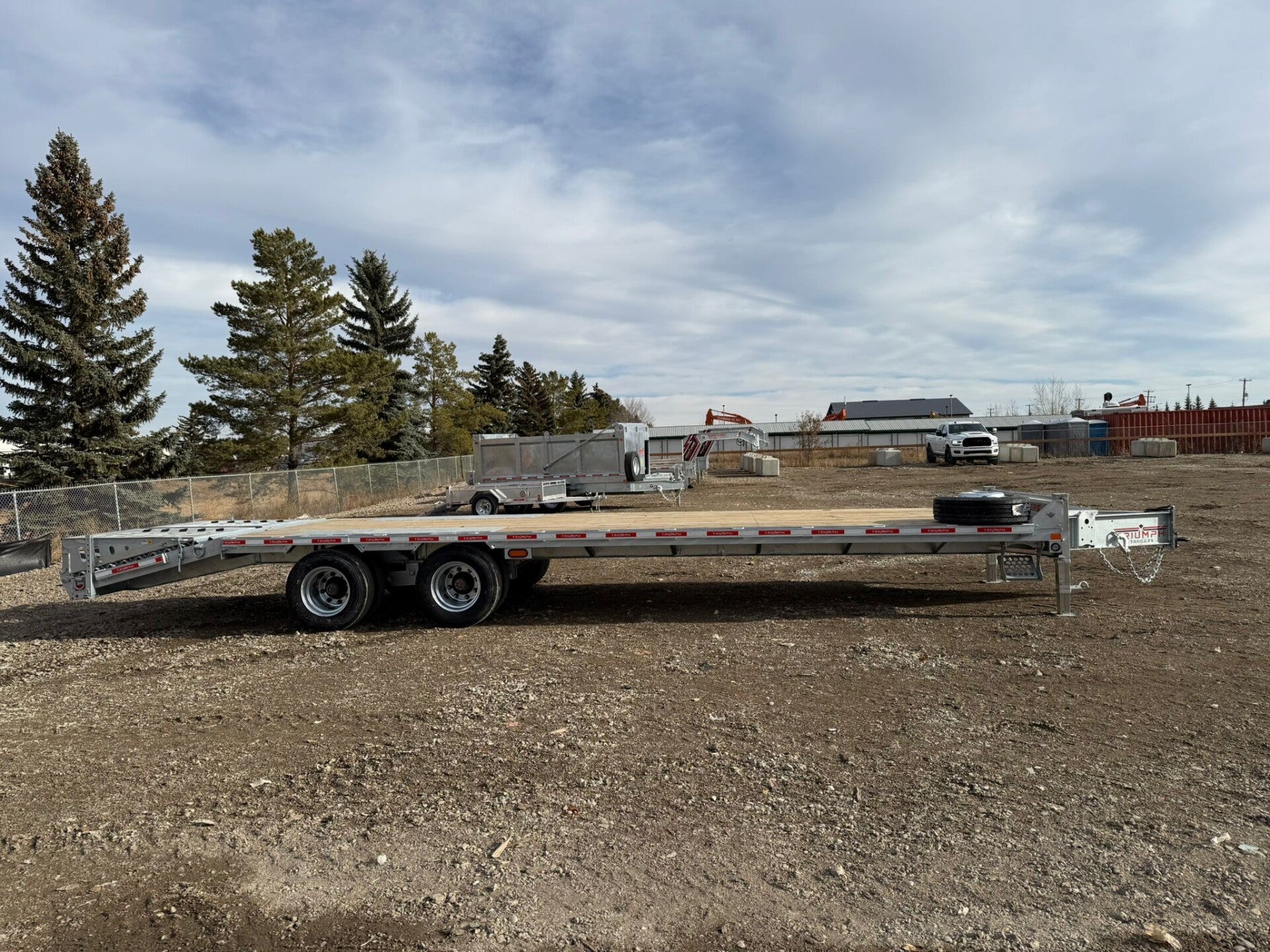

GHDEF2 Extreme-Duty Bumper Pull Deck-Over Trailer

Introducing the GHDEF2 Ultimate Commercial Trailer – Built for Durability and Performance

Heavy-Duty Construction:

• A trailer size of 8' x 25' + 5', with a GVWR of 26,400 lbs
• 16” Engineered I-beam with 1/4” x 4” flanges (tandem axles)
• 18” Engineered I-beam with 3/8” x 4” flanges (triple axles)
• 7-gauge webbing (tandem) and ¼” (triple axles)
• Cambered deck on triple axles for smooth hauling
• Torque tube on 30’ and longer trailers
• Slipper suspension for superior stability

Robust Features:

• 3” crossmembers, spaced 16” OC
• Drop legs for easy loading
• Integrated toolbox & winch plate for convenience
• Heavy-duty, spring-assisted mega ramps
• Drop-in ramps secured with draw latches
• 2” rub rail with stake pockets & chain spools every 12”

Load Capacity & Safety:

• Upgraded to 16,000 lb hydraulic axles
• 235/80R16 galvanized wheels and tires, spare included
• Two 12k spring-loaded jacks
• 14-degree load angle with a 5’ beavertail
• 3” adjustable coupler for versatile towing

Enhanced Durability & Safety Features:

• Treated yellow pine decking
• LED lighting & sealed wire harness
• D-rings for securing loads

Additional Convenience:

• Fold-down side steps on both sides
• Spare tire mount

Additional Options:

• Winch tracking
• Tandem 2-speed jacks
• Tandem hydraulic jacks
• Hutch suspension
• Undermount toolboxes

Not quite what you’re looking for? This trailer is also available in the following frames:

• GHDEF1 - 8x20+5’ tandem, GVWR 26,400 lbs
• GHDEF4 - 8x25+5’ triple, GVWR 39,600 lbs
• GHDEF5 - 8x30+5' triple, GVWR 39,600 lbs

Whether you're transporting heavy equipment or versatile loads, this trailer is designed to handle it all with ease. Built tough, loaded with features, ready for your next job!
