GPTD3 - Heavy Duty Bumper Pull Deck-Over Hydraulic Tilt

GPTD3 - Heavy Duty Bumper Pull Deck-Over Hydraulic Tilt
CA$18,734.00

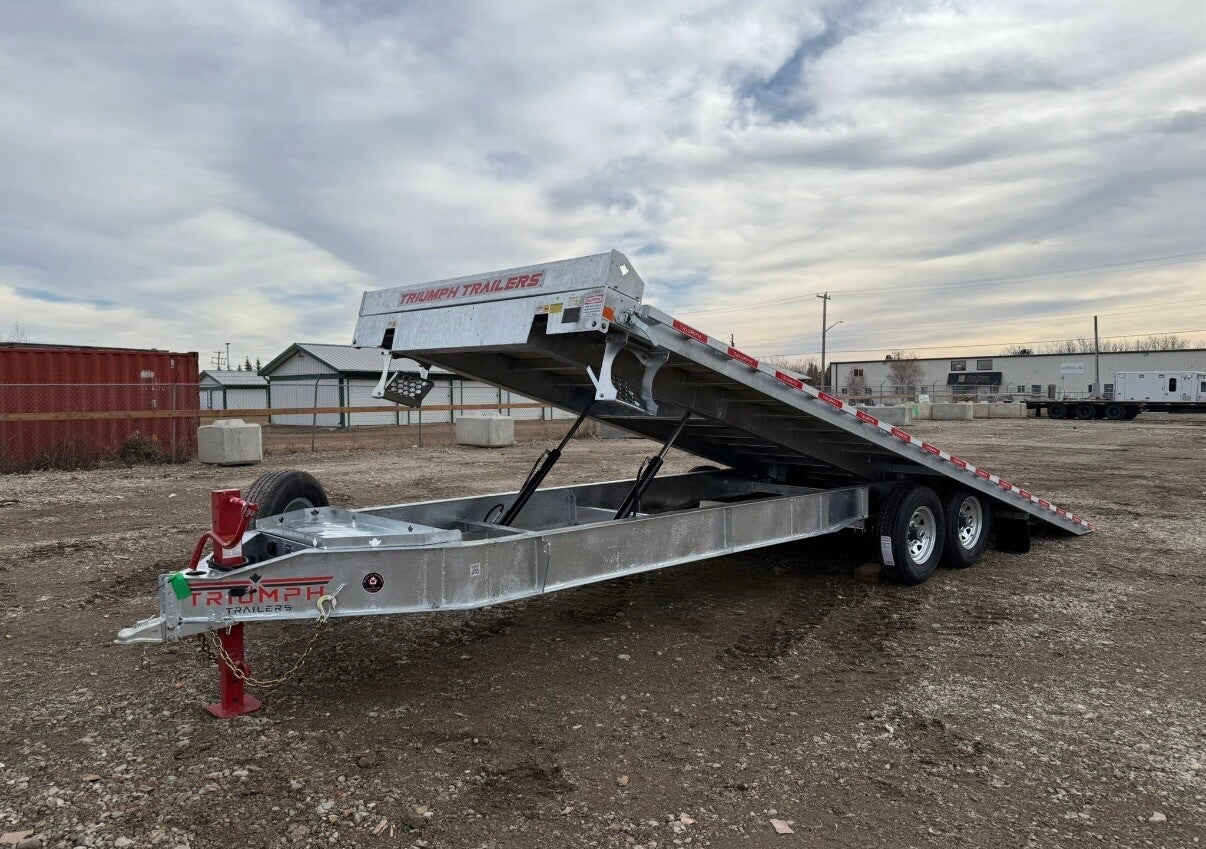

GPTD3 8.5x24’ Heavy Duty bumper pull deck-over hydraulic tilt

Introducing the Heavy-Duty Hot Dip Galvanized Deck-Over Hydraulic Tilt Trailer – Built for Strength and Reliability

Robust Construction & Size:

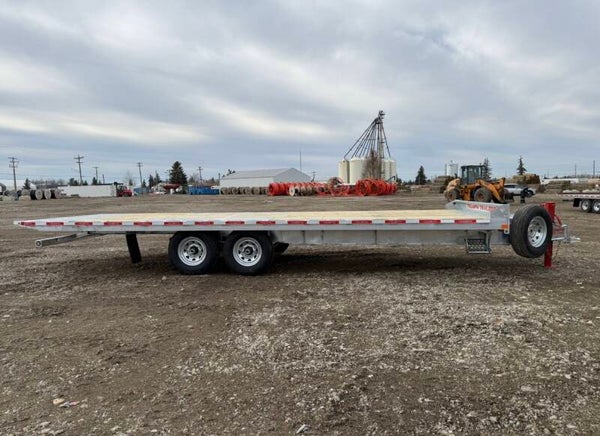

  • 8.5’ x 24’ deck-over design with a GVWR of 14,000 lbs
  • Hot dip galvanized for superior rust and corrosion resistance
  • 10” engineered I-beam frame with ¼” x 4” top and bottom flanges
  • 10-gauge webbing on 7-ton, 7-gauge on 10-ton models
  • 3” crossmembers, spaced 16” on center
  • 2” x 3/8” rub rail along sides
  • Stake pockets and chain spools every 12” for secure tie-downs

Load & Safety Features:

  • Spring-loaded drop-down light/crash bar for safety
  • Heavy-duty integrated winch plate and recessed channel for winch cable storage

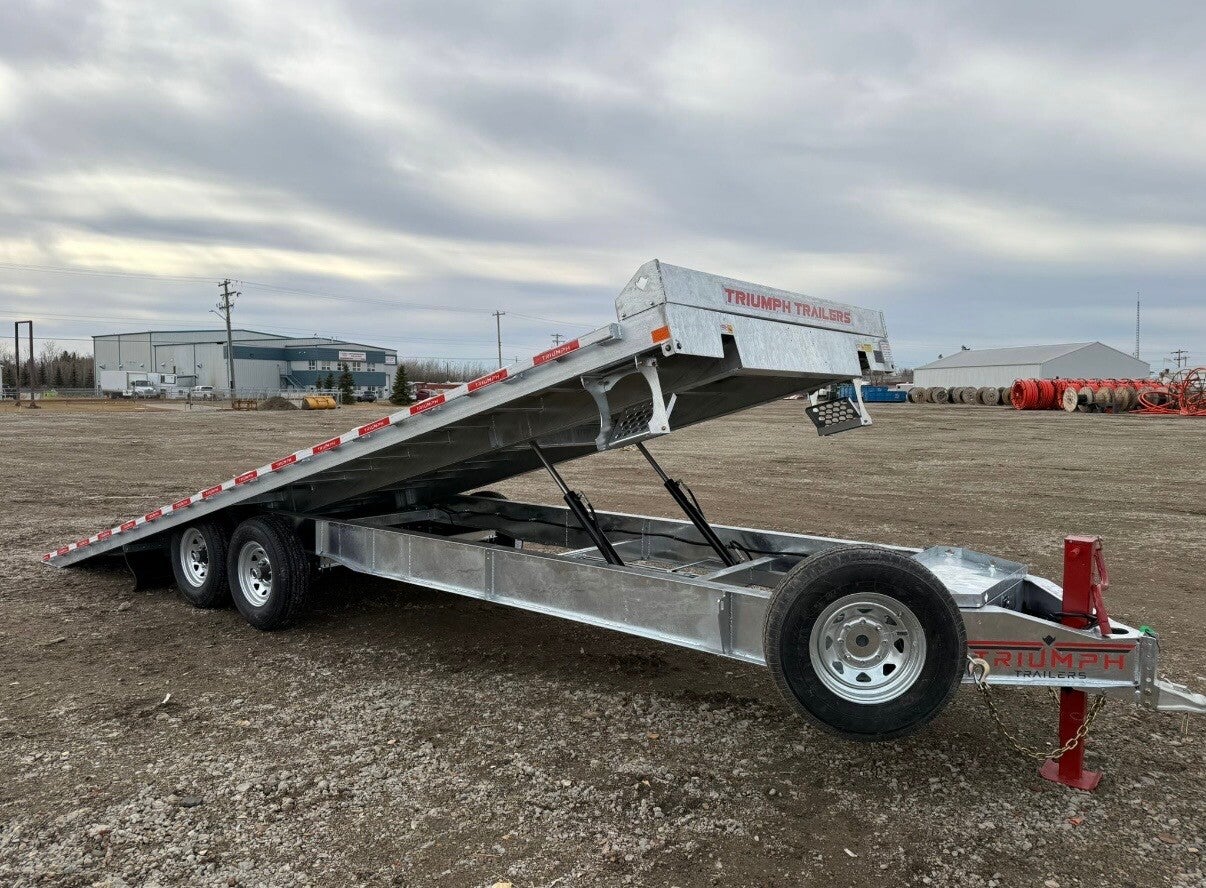

  • Dual hydraulic cylinders exceeding trailer rating for smooth tilt operation

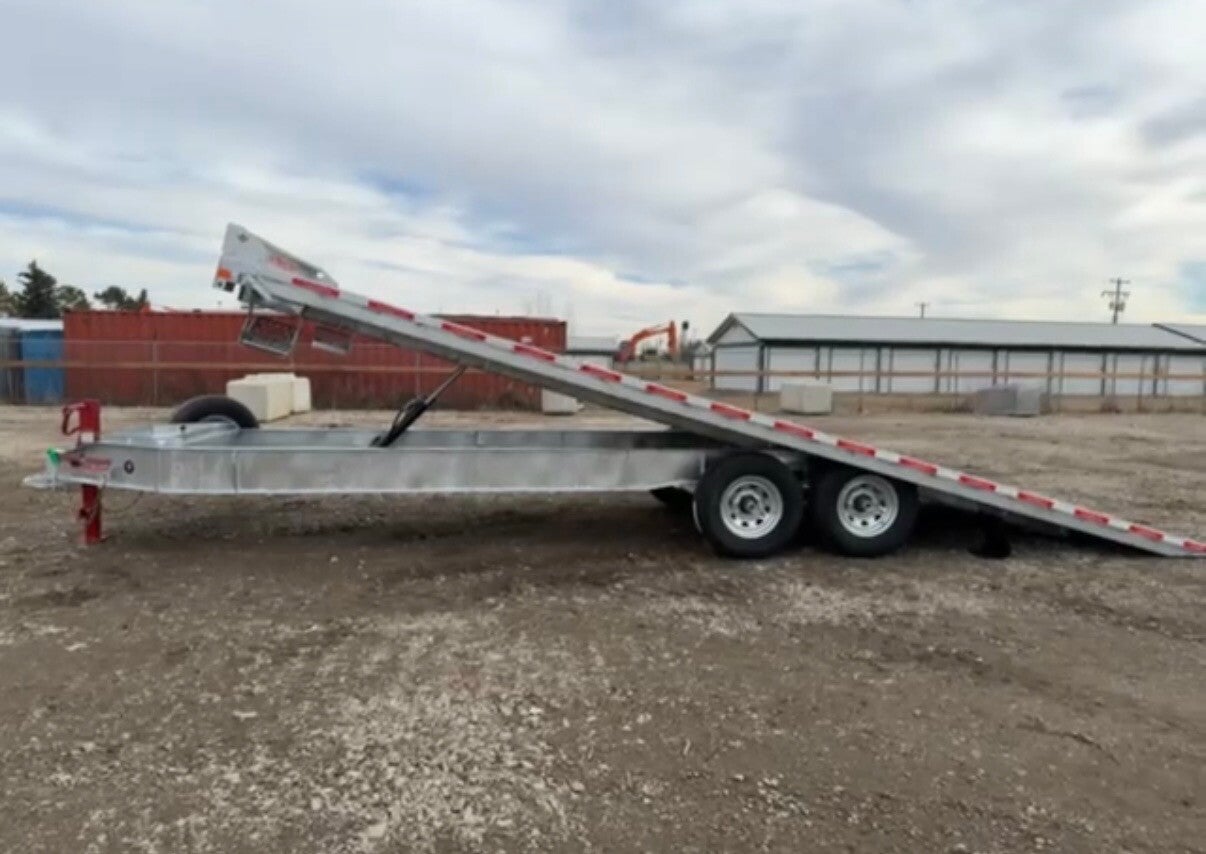

  • 15-degree load angle for efficient unloading
  • Chain slots in the knife edge for secure fastening
  • Additional options: winch tracking, spare tire, 3” eye adjustable pintle ring (25,000 lbs capacity)

Power & Support:

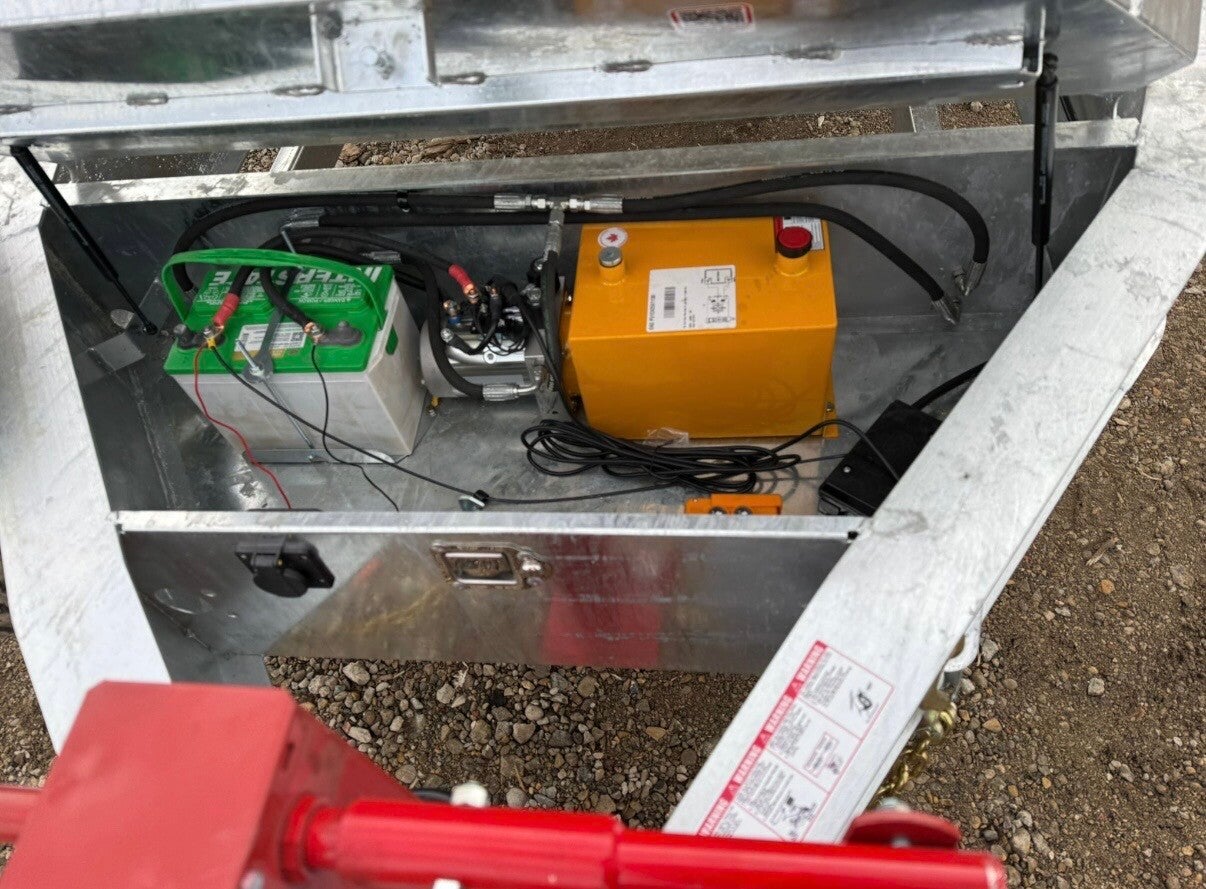

  • Deep cycle battery included
  • 2-stage power unit with power-up/power-down capabilities
  • 2 5/16” adjustable coupler for versatile towing
  • 12k spring-loaded jack for stability during loading and unloading
  • Hydraulic jack and undermount toolboxes (optional)

Durability & Components:

  • Treated yellow pine decking for longevity
  • EZ lube hubs (7-ton) and oil bath hubs (10-ton)
  • Galvanized wheels supporting high-capacity tires: 7 ton – 235/80R16; 10 ton – 235/75R17.5

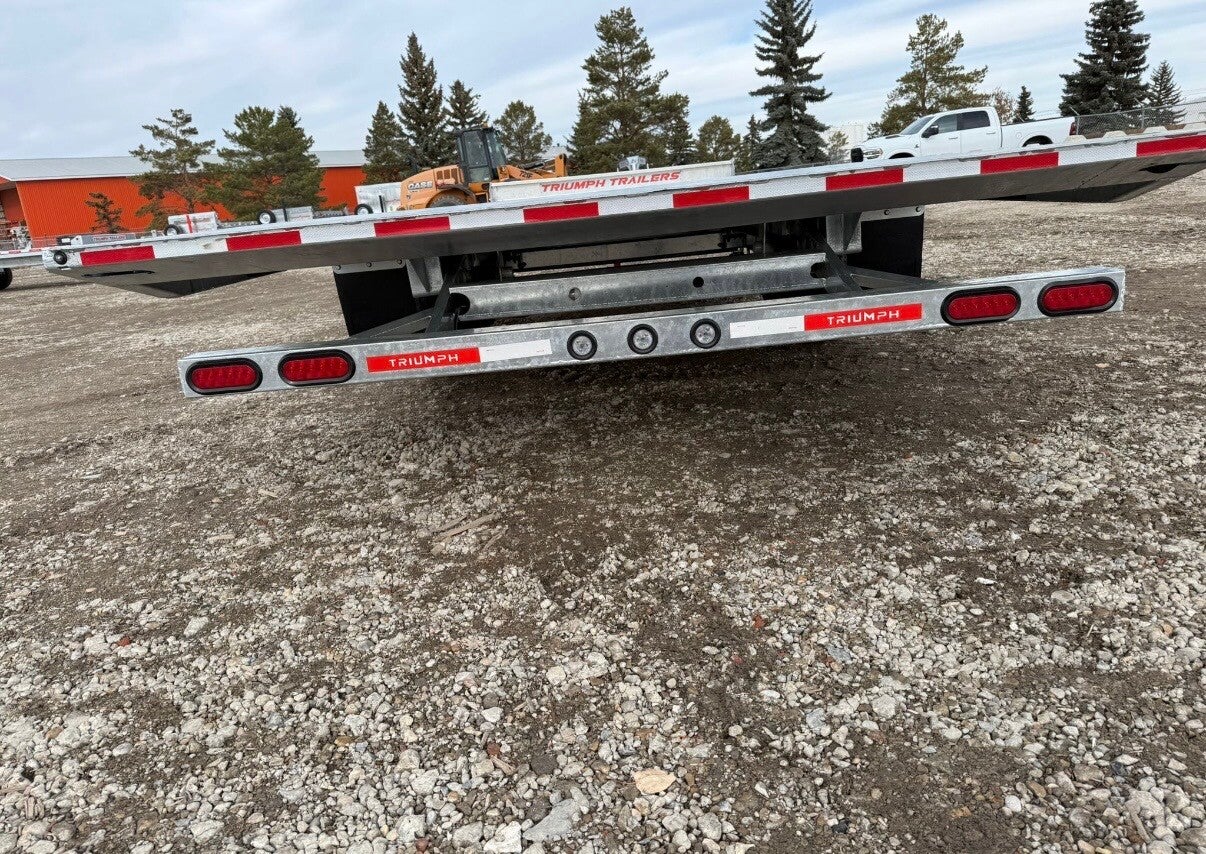

  • LED lighting & sealed wire harness for maximum visibility and protection
  • Mud flaps included
  • Built-in 110V charger for electrical maintenance

Additional Options Available:

  • Winch tracking
  • wheel/tire upgrade
  • 8k axle upgrade
  • Wireless remote control for ease of operation

Not quite what you’re looking for? This trailer also comes in a heavier duty variant as an 8.5’ x 24’ with a GVWR of 20,000 lbs. Check out our GPTD4!

Designed to handle demanding loads with ease, this galvanized tilt trailer offers unmatched durability, safety, and versatility for professional hauling needs.
